System 80B and System 3, 40 Digit LED Display Products
Replacement LED Displays for use in Gottlieb Pinball Machines.

Upgrade your machine now!
Currently Available Kits for System 80B and System 3.
80B (Early Version): Amazon Hunt 2, Arena, Diamond Lady, Genesis, Gold Wing, Hollywood Heat, Monte Carlo, Raven, Robo-War, Rock, Rock Encore, Spring Break, TX-Sector, Victory
NOTE: the digit size on these new displays are 0.56" high vs. the original Gottlieb size of 0.39", you will be delighted with the larger display digits.

80B (Mid Version): Bad Girls, Big House, Bone Busters, Excalibur, Hot Shots

System 3 (Late Version): Bell Ringer (mini pinball), Cactus Jack,
Car Hop, Class of 1812,  Deadly Weapon, Hoops, Lights Camera Action, Nudge-It (redemption), Operation Thunder, Silver Slugger, Surf n Safari, Title Fight, Vegas
NOTE:
This version will not fit Bounty Hunter, Chicago Coin Triple Play, or Tag-Team, due to the larger size digits in our new displays.
Let us know if you are interested in these machines, as we may do a smaller digit version if there is enough interest.
General Notes about Display Colors
Some Machines come with a blue or
green tinted plexiglass front panel. Most of the 80B machines have these. Our displays are white, so the color plexi is the color you will see on your machine. If you want to swap colors on these machines, you will need to find a new plexiglass panel.
Most System 3 Machines have backglass that has a blue or green filter attached to the backglass. We do not provide one with the display, but if yours is damaged, we may be able to provide you with a  piece of filter, please email us first.
If you have a filter that can be removed, then it is also possible to change to a different filter to get a different look on your machine. Say red or even stick with the white LEDs if you think it will look better on your machine.

The latest in LED technology!!!

Design Information
These boards are designed to replace existing Gottlieb displays. We tried to design a direct drop-in replacement for the displays, but the white LEDs that we user require a higher voltage to operate than the standard LEDs displays. So and additional power supply is provided that will plug into the service outlet on your machine, other than that, the other connectors are the same.
This kit does not require any soldering, cutting of wires, or modifying of any harnesses, so if for some reason you wish to re-install the old displays, you can do it without any problems. The installation of the new LED displays takes about 20 minutes.
Our kits contain all the parts you will need to install in your Gottlieb Pinball Machine. Our kit also includes a brightness adjustment so that you can set the LED's to your viewing pleasure.
Also see our ebay Store to order these and other products or E-mail us.

eBay Store: bostonpinballcompany
WYSIWYG Web Builder
There are 3 Versions of this display, be sure to select the one with your machine name.

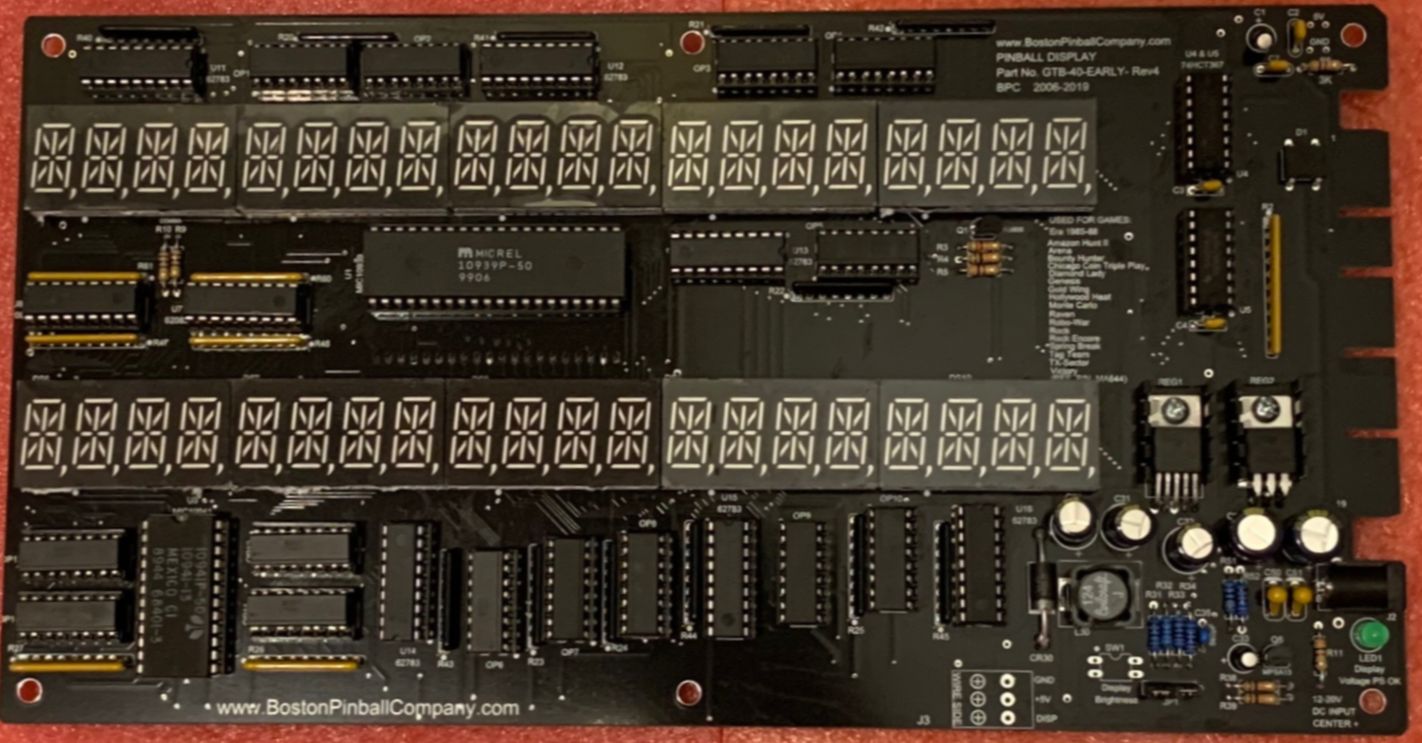

Early Version; 24 Pin Edge Connector
Replaces MA644

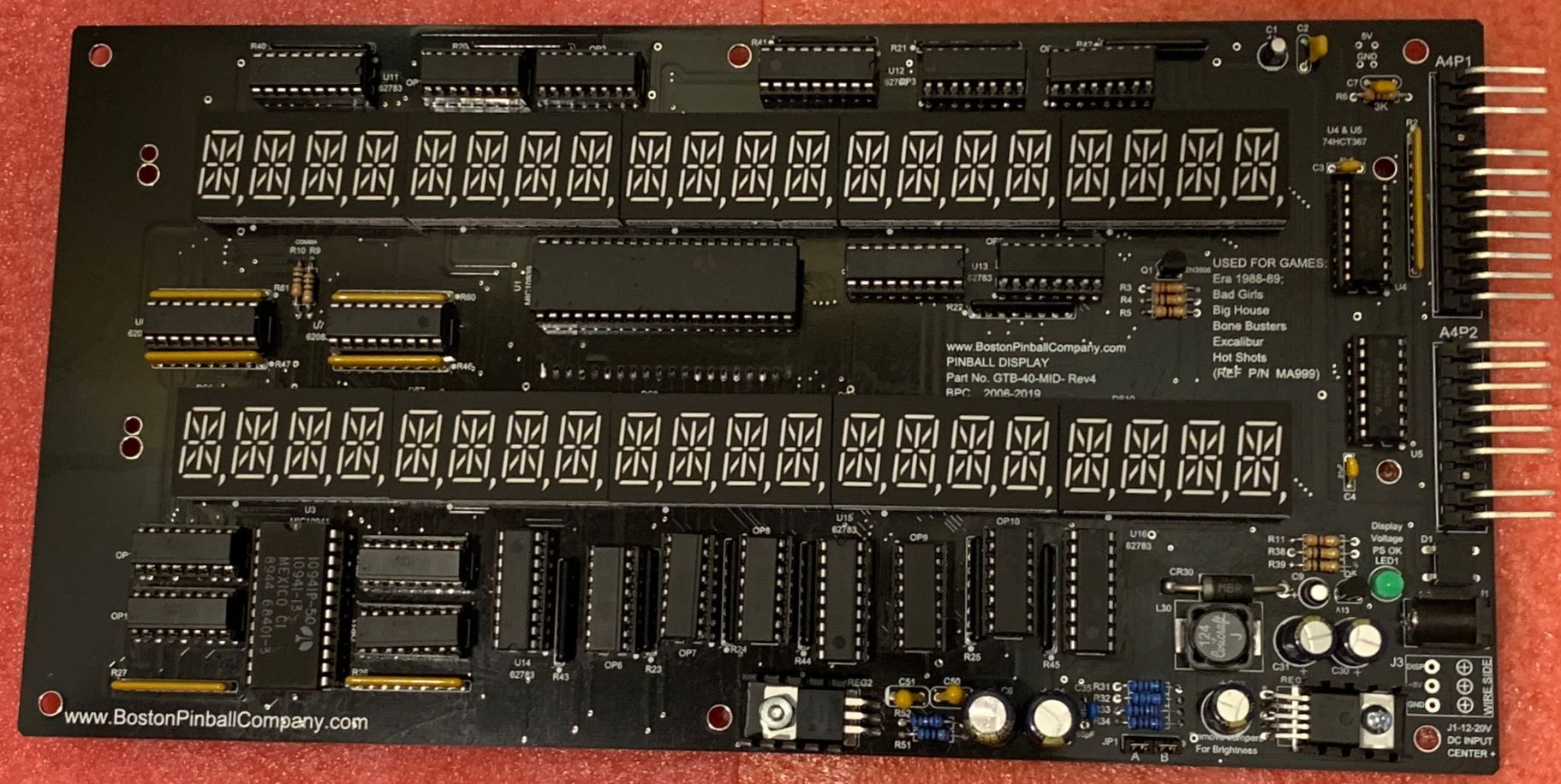

Mid. Version; 9 & 12 Pin Connector
Replaces MA999

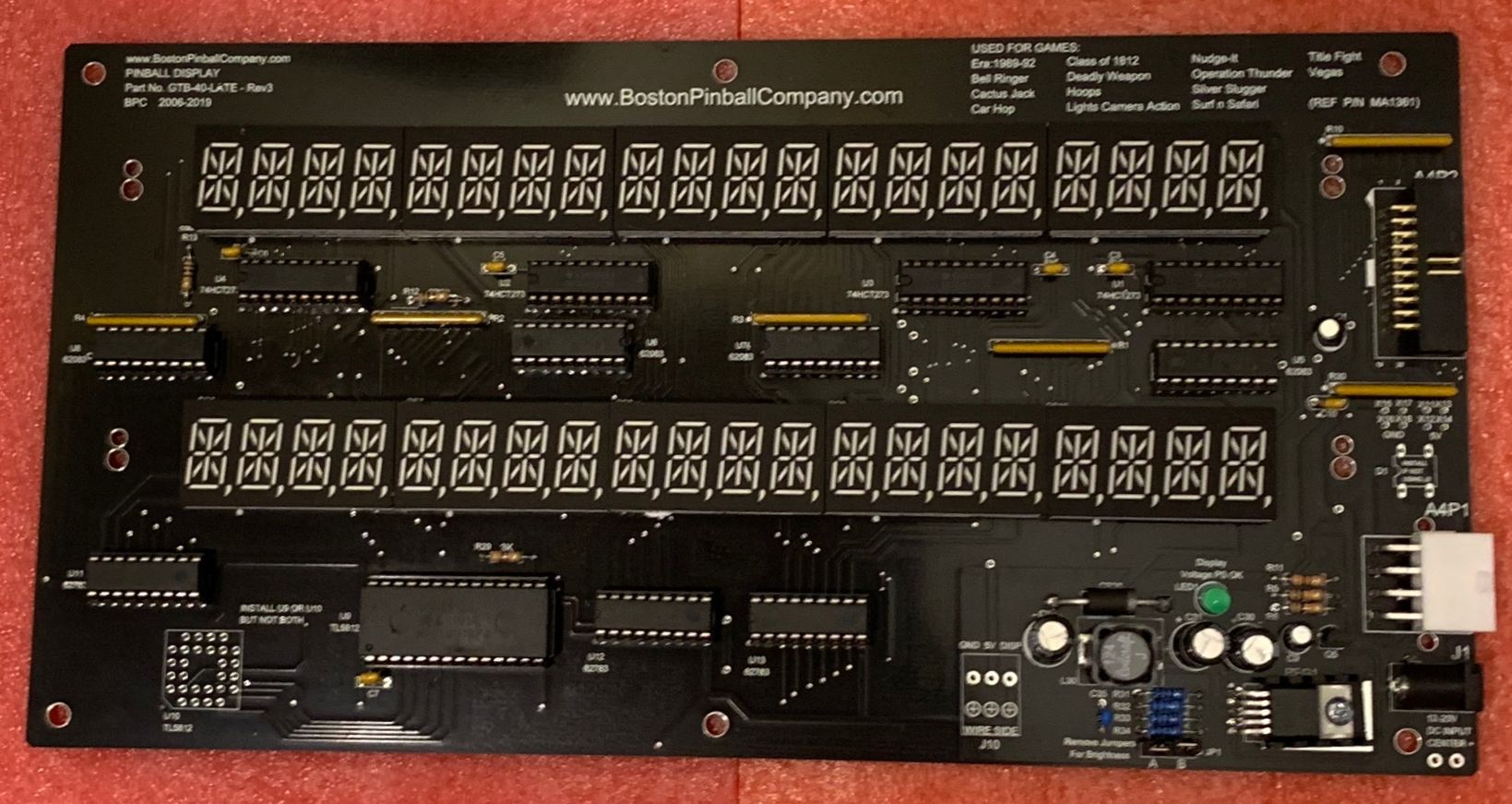

Late Version; 24 Pin Ribbon & 8 Pin Power Connector
Replaces MA1361

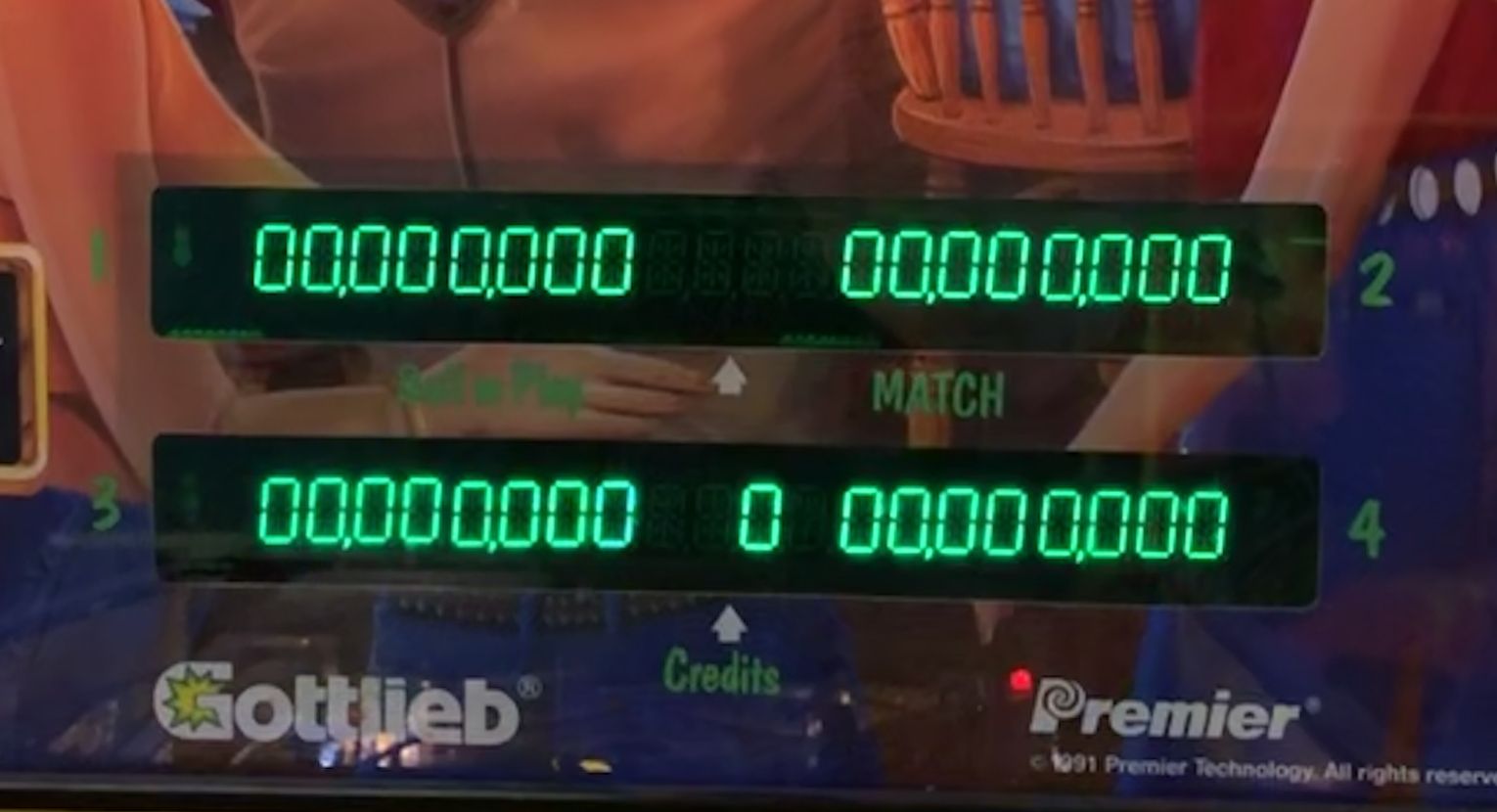

Example in Cactus Jacks Machine
Early Version (80B) $299.00
Machine Name
Mid Version (80B) $299.00
Machine Name
Later Version (System 3) $269.00
Machine Name
Note: orders directly from our web site will receive free shipping in the US (limit 2 items).
