Replacement Scoreboard Kit for Chexx
This will replace your existing electronics PCB assys in the original Ice Chexx Bubble Hockey game. The Chexx scoreboard is no longer made or supported by I.C.E. (Innovative Concepts in Entertainment, Inc. ) so we decided to take matters into our own hands and create a replacement kit for those aging scoreboards.
It is not for Super Chexx which has a different version.

New Kit includes:
Full set of PCBs, 2 display boards, 1 control board, 3 white LED playfield light strips, 2 period adapter plates, period stickers.

All new components and re-designed PCB's with enhancements.
Modular design eliminate all those interconnecting wires for easy assembly.
We replaced the hard to get and expensive 74LS47 display driver chips with readily available 4511 chips.
Using single 7-digit displays as opposed to the dual version to make it easier to change if needed in the future.
The old I C E square white lamps (no replacements available) that were used for the periods have been replaced with a more traditional red LED's to show the periods.
The 2 automotive 12 volt lamps used for the playfield lighting have been replaced with super nice looking white LED's, makes the "ice" really stand out! No more yellow looking ice!!
We eliminated the power wasting heat sources, so that noisy fan is no longer needed! (It's just a big spacer now.)
Installation is plug-n-play, just remove all the guts in your existing scoreboard, install our new PCB kit and you'll be up an running again in about an hour.

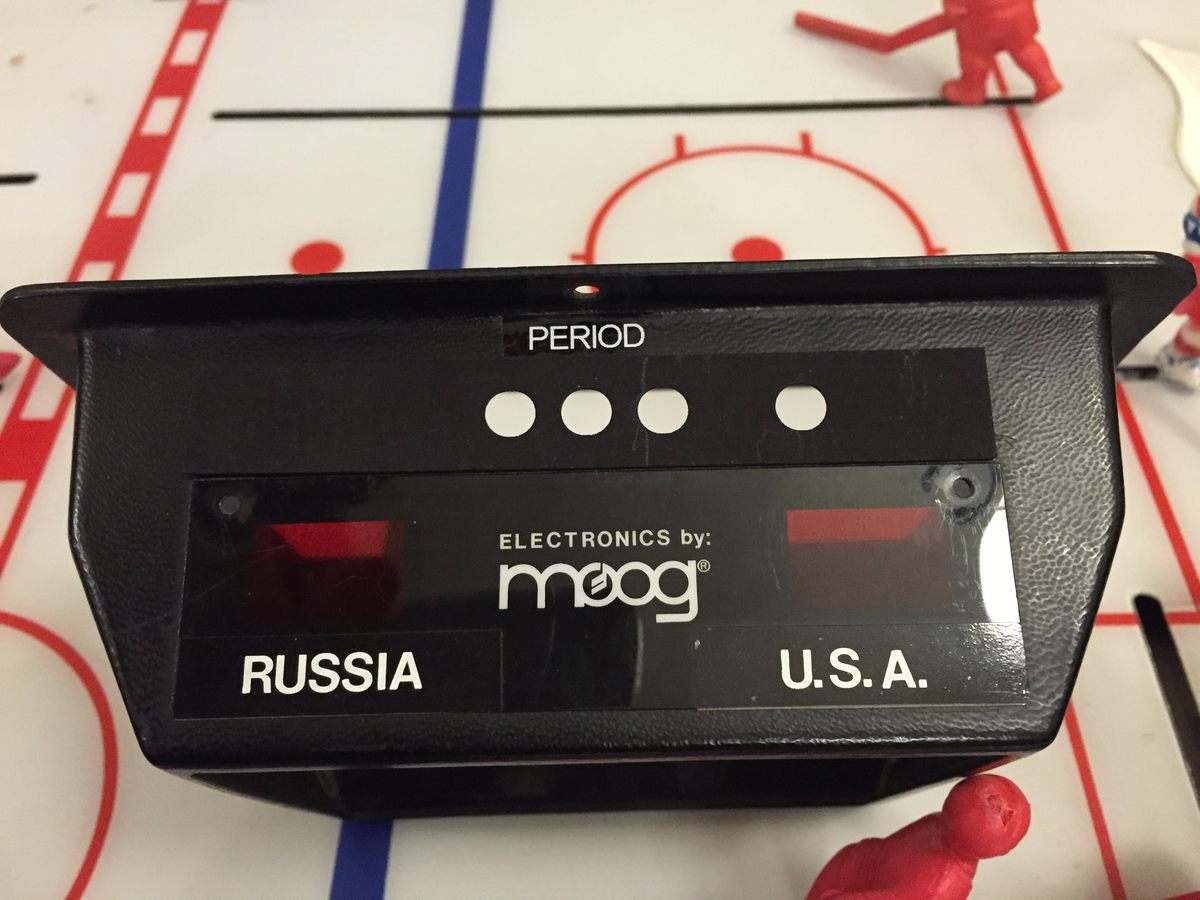

We also include the "PERIOD" sticker shown above the red LED's.

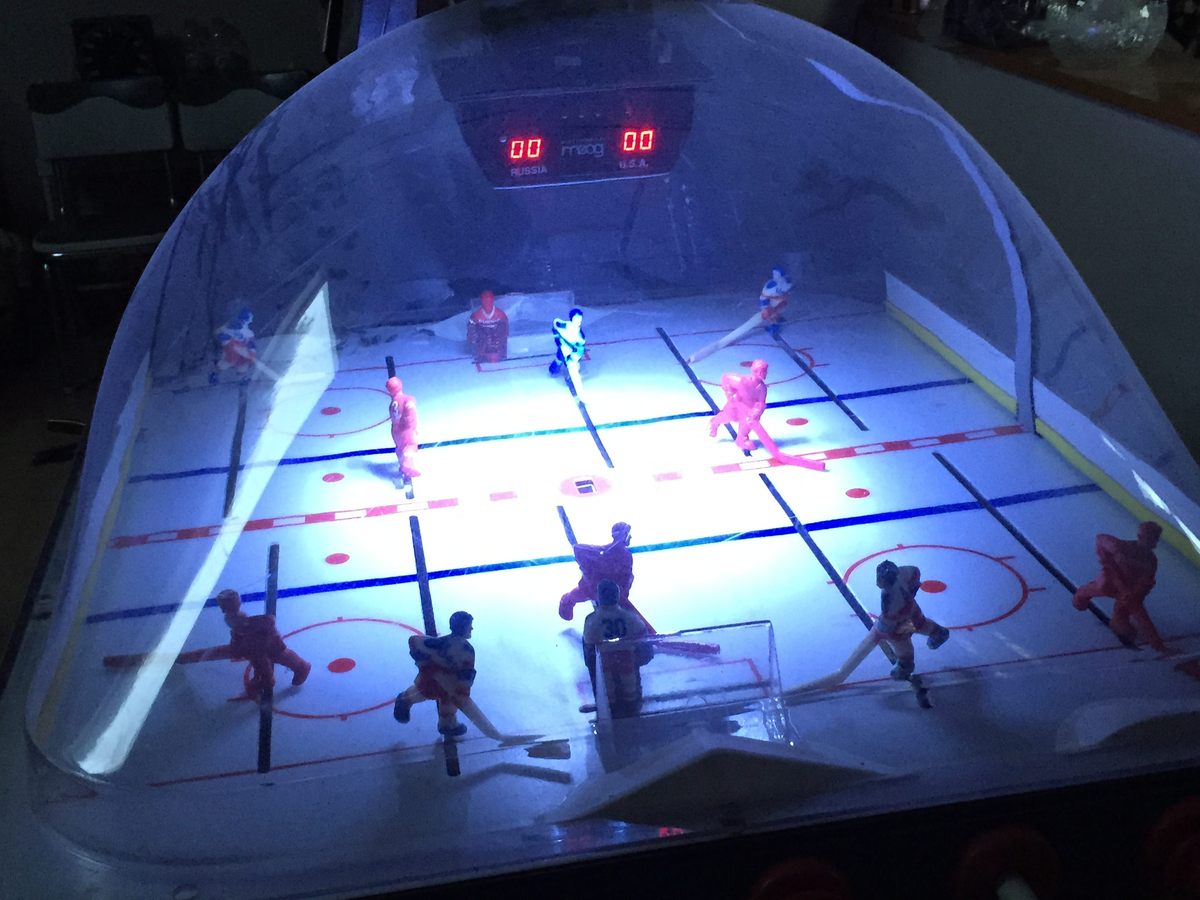

Note, the picture of the white LED's done on the playfield is not exactly as real life, it shows as a round area, but it really spreads the light nicely, we couldn't get a good shot of this.

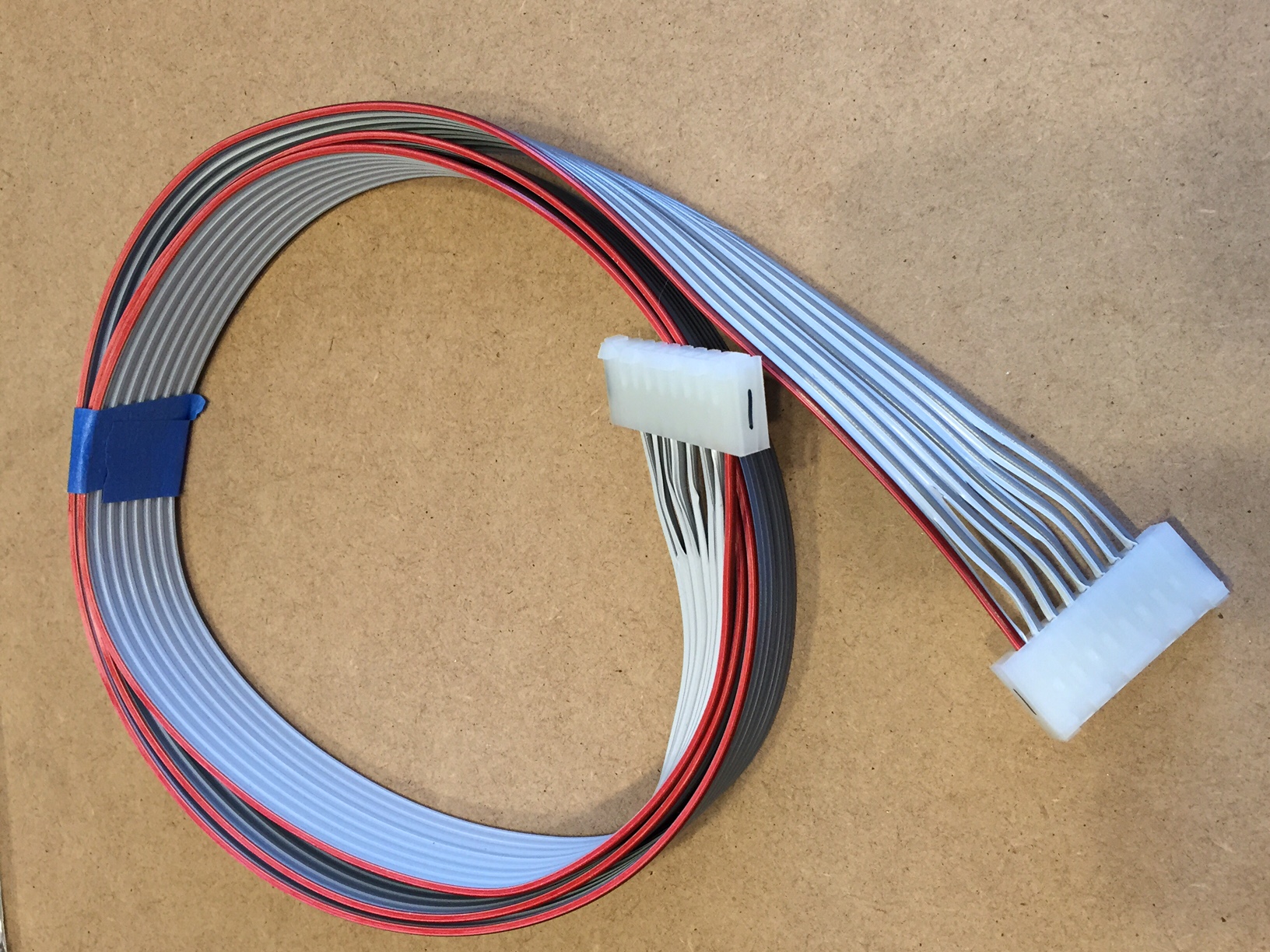

We have parts available for a new 8 pin ribbon cable. This new cable has crimp style terminations to replace the old and unreliable IDC (insulation displacement connectors). We have also added 10 pin housings with key pins to avoid the accidental connection of the cable.  (The cable available from I.C.E. still uses IDC connectors).
We will be making some of these, keep an eye out for the listing, we will post when we make a few, but let us know if you are interested.

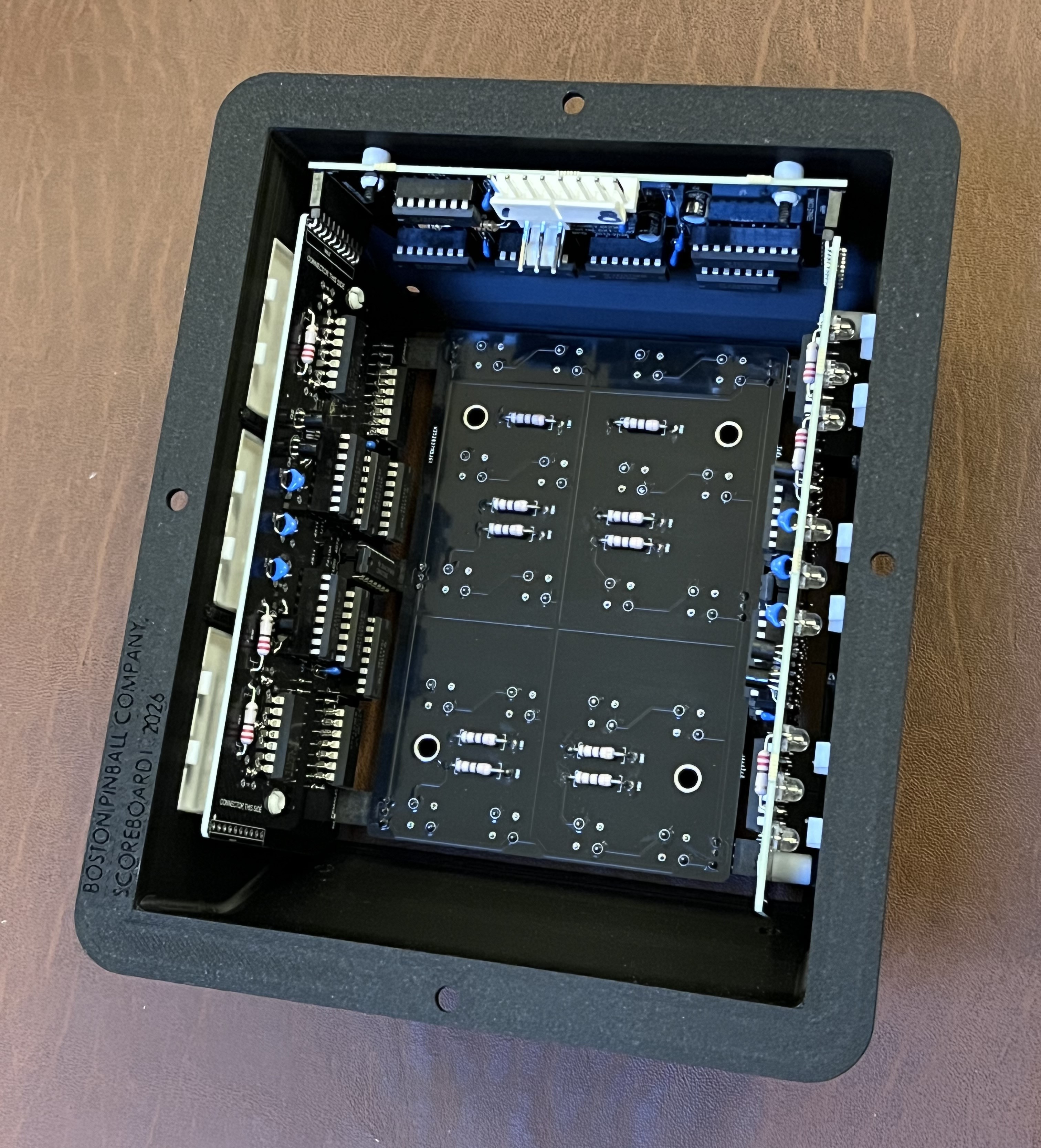

We also have been testing a new housing that we had 3D printed. It can replace an original scoreboard, but does not include the red lens and is just a bit thinner than the original to save a on the cost. When updated we will post it if you'd like to print your own. It will be available in Shapeways. It's not as smooth as a vacuum formed part, but can be used if your original one is broken. Again, let us know if this is something you are interested in, it we get enough requests, we may make a few available.
Original Chexx Scoreboard with many wires.....

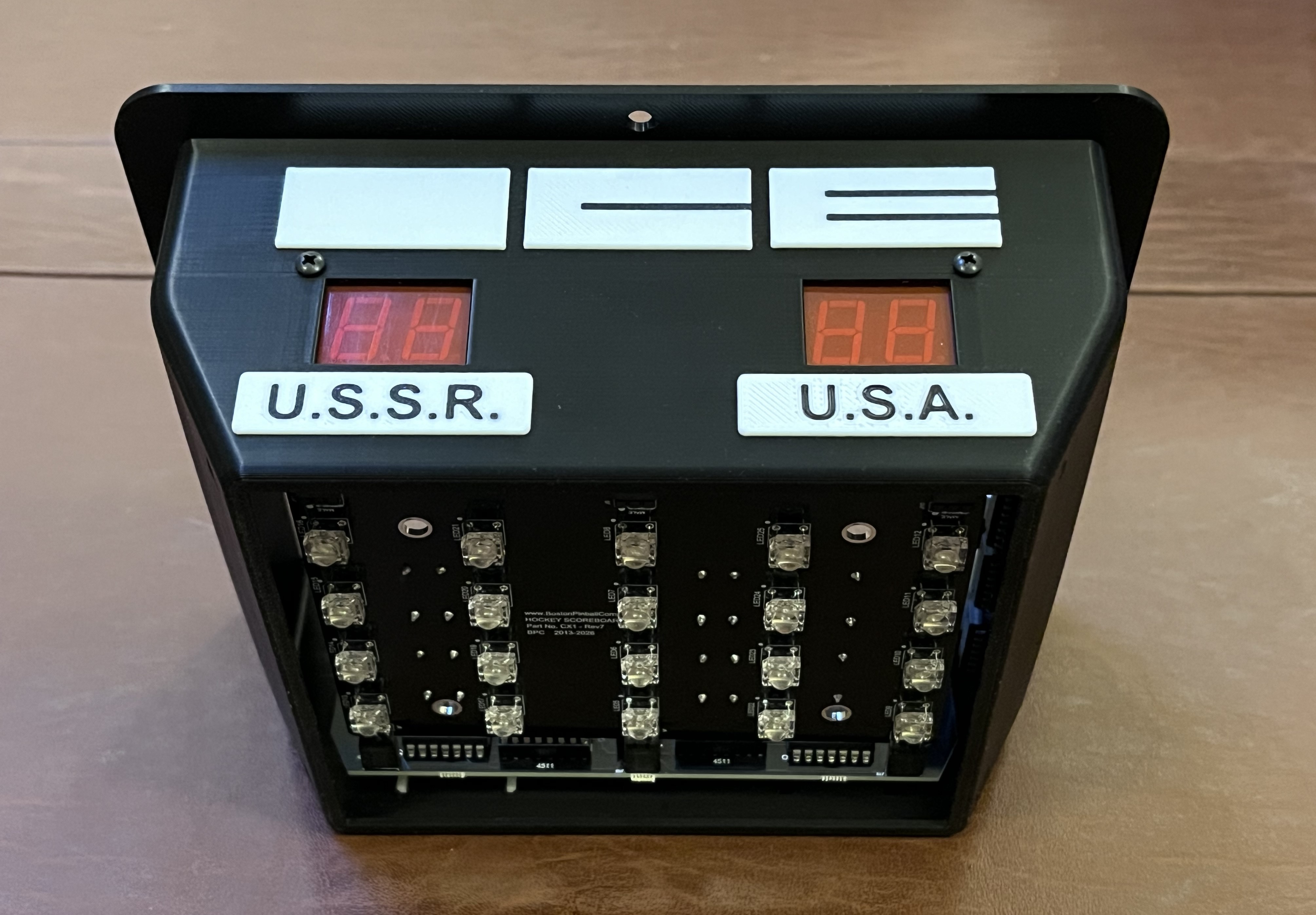

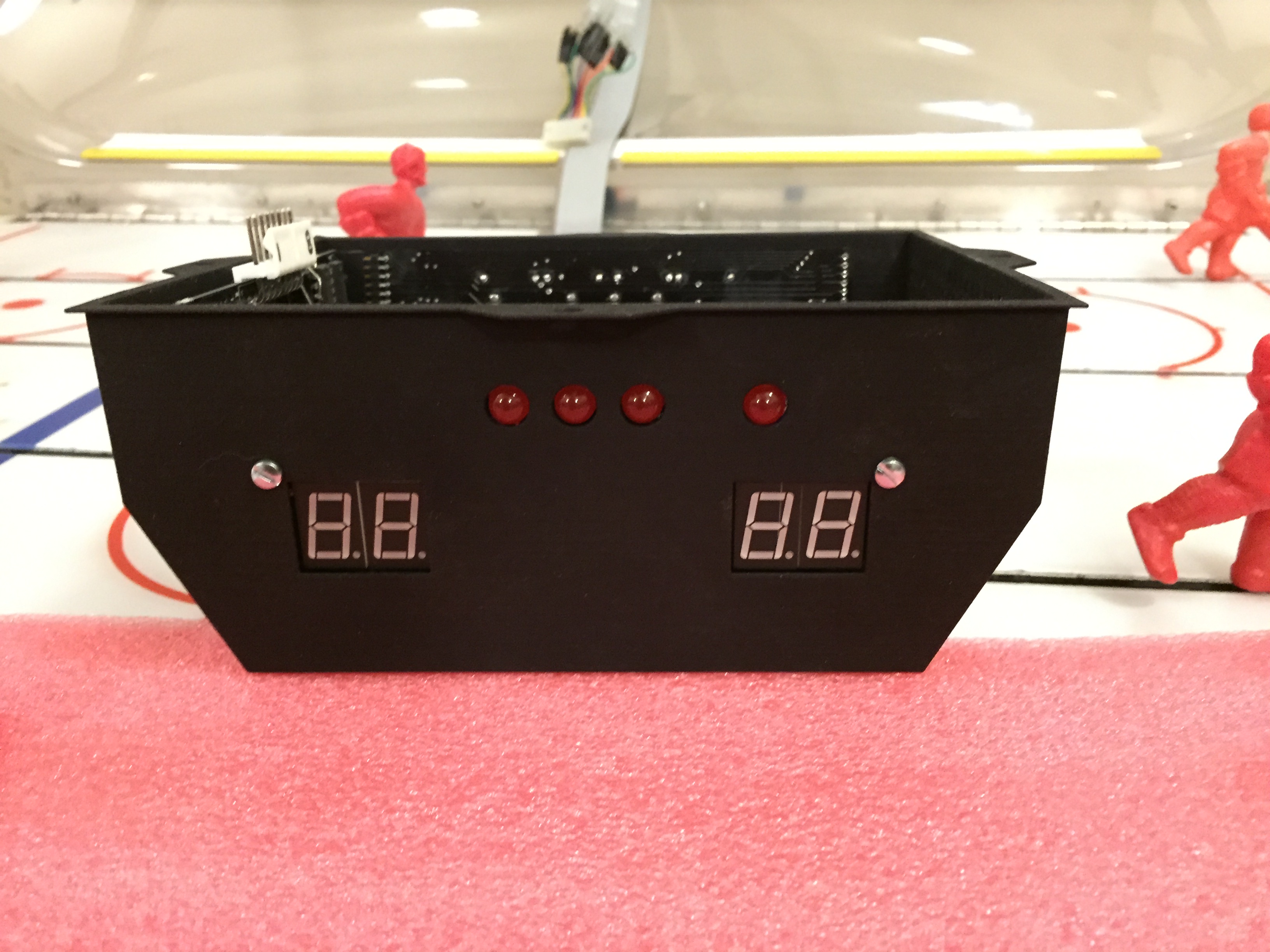

Chexx Prototype Scoreboard made by Shapeways

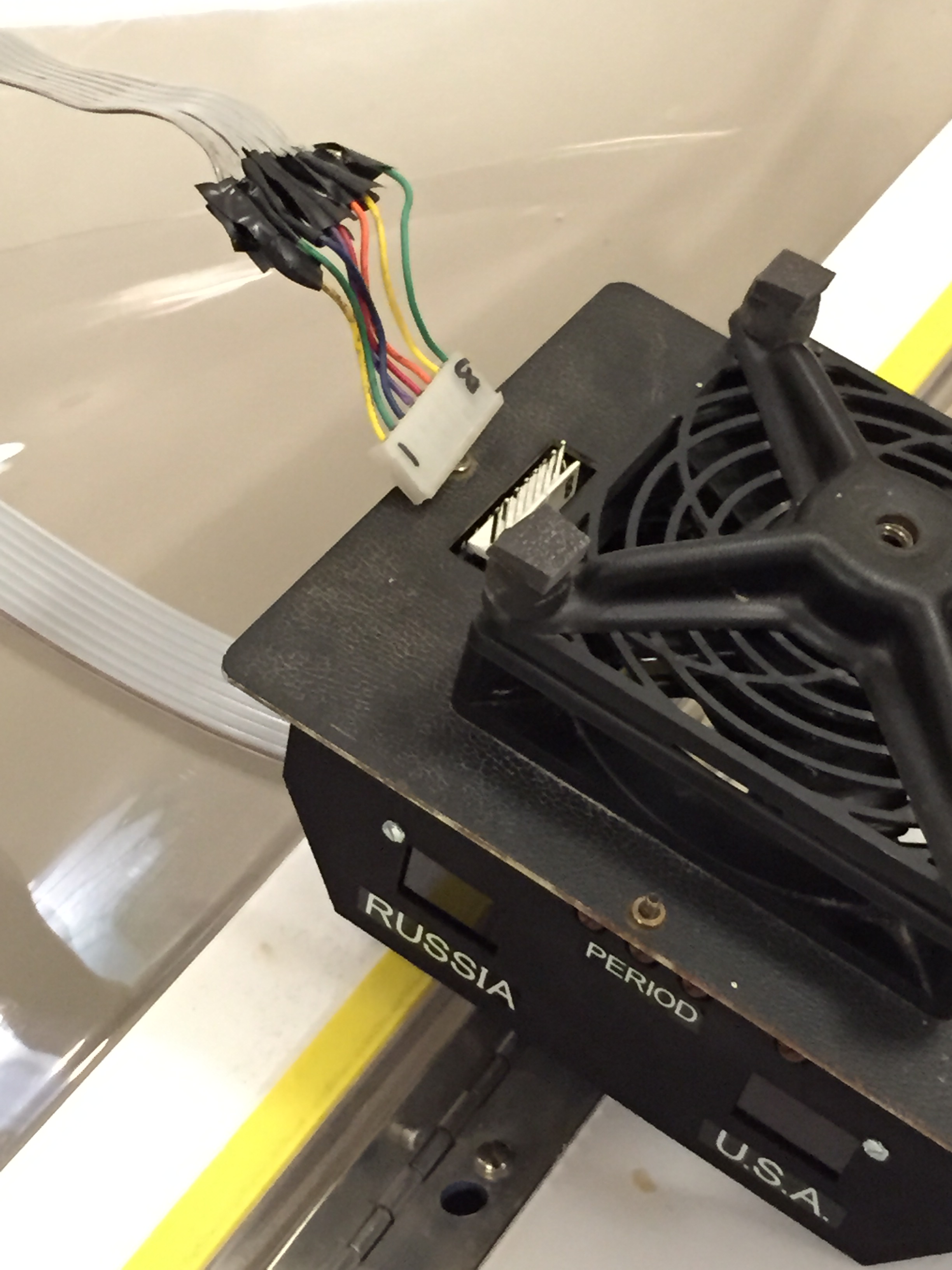

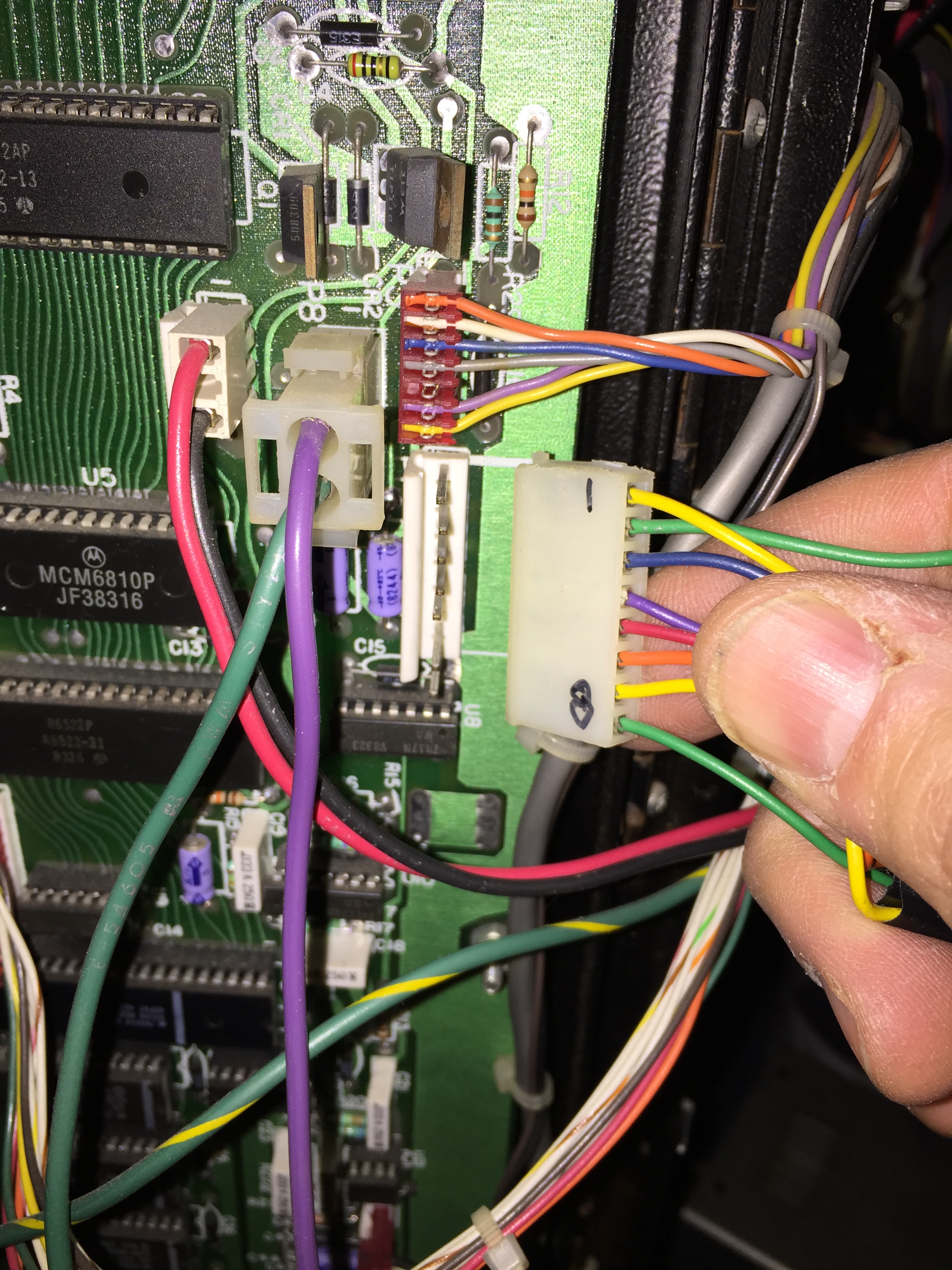

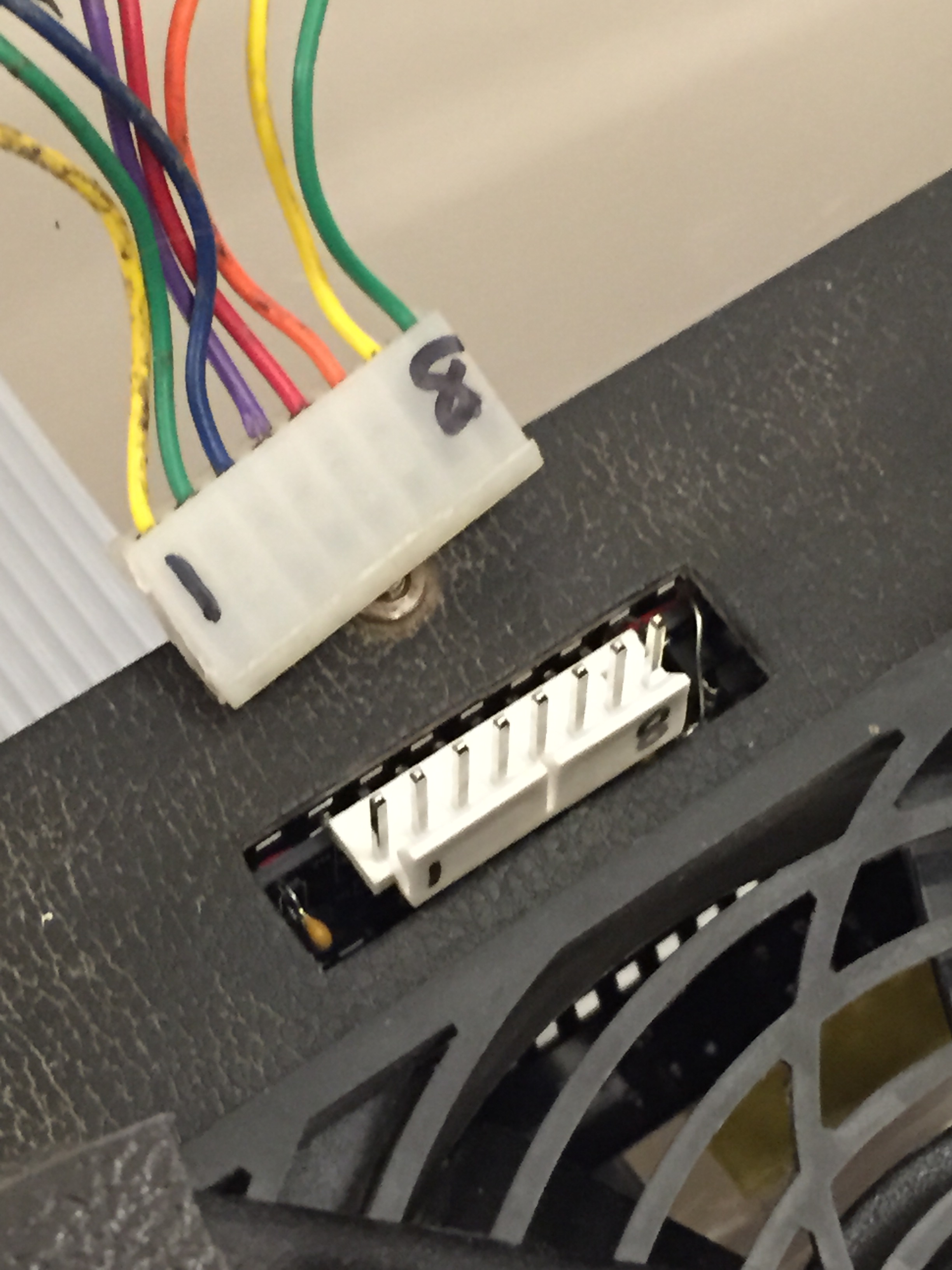

Chexx Ribbon Cable Orientation
Kits now available, see our Ebay listing to purchase one.

eBay Store: bostonpinballcompany
Installation Instructions Rev 2
Ribbon Cable Assy now available, see our Ebay listing to purchase one.

eBay Store: bostonpinballcompany
We also have replacement Scoreboard Displays for Super Chexx games as well. Check our EBay listings or E-Mail us.

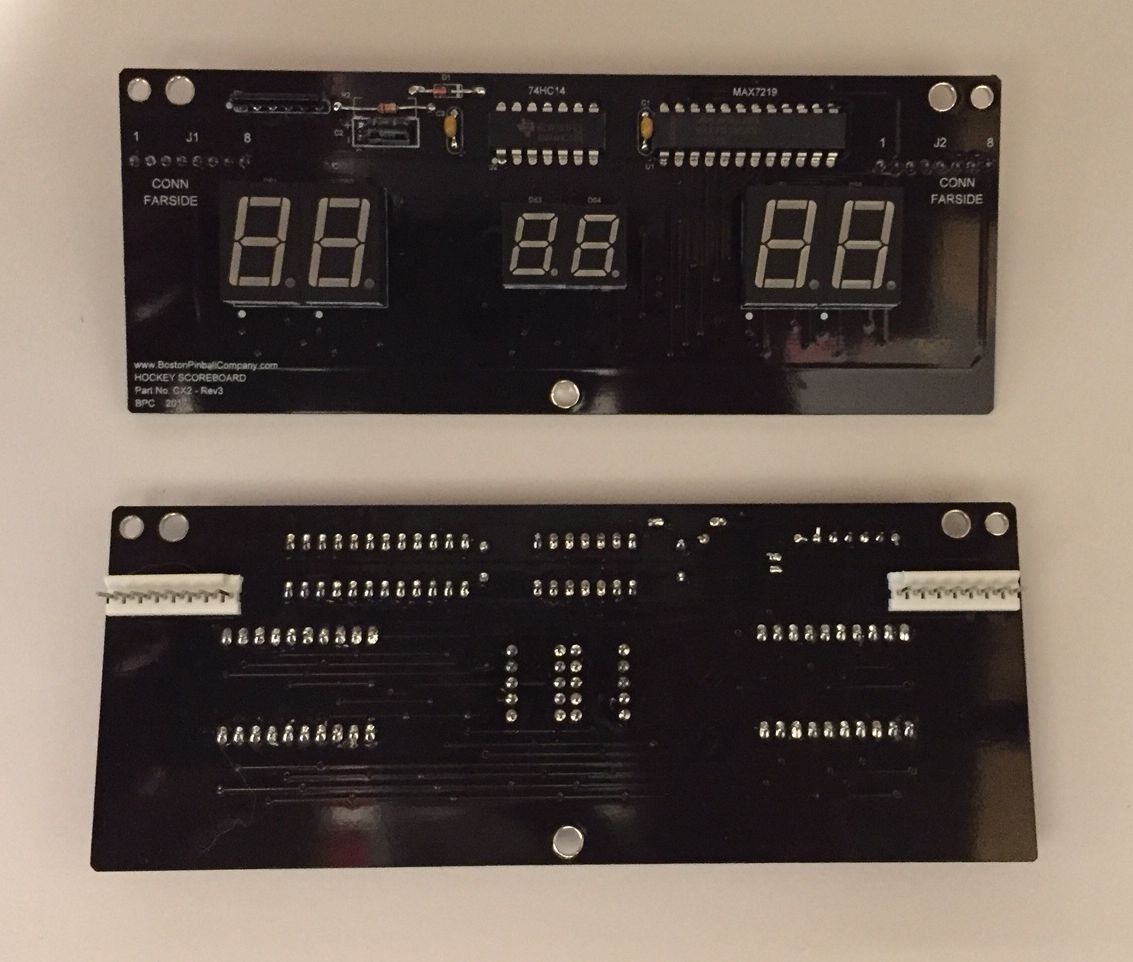

Replacement Scoreboard Displays for Super Chexx
